Welding Positions are the different angles of joining metal materials. There are 4 types of welding positions named Flat 1, Hirizontal 2, Vertical 3, and Overhead 4.
용접 자세는 금속부재를 붙이는 다른 각도(자세)를 뜻합니다. 네 종류의 용접자세이며, 바닥 1, 수평 2, 수직 3, 오버헤드 4라고 합니다.
The main welding types are groove and fillet welds. Welders can perform these two G and F welds in all 4 positions. 주 용접 종류는 그루브(홈) 용접, 필렛용접입니다.
Fillet Weld (F) – Joining two parts of metal vertically or slightly at an angle.
필렛용접 F - 두 부재가 붙은 수직의 면에 용접
Groove Weld (G) – Welding through the groove. It needs the full penetration to lay strong welds.
그루브용접 G - 홈을 따라 용접. 강도를 위해서 홈에 완전 용입시 켜야 합니다.

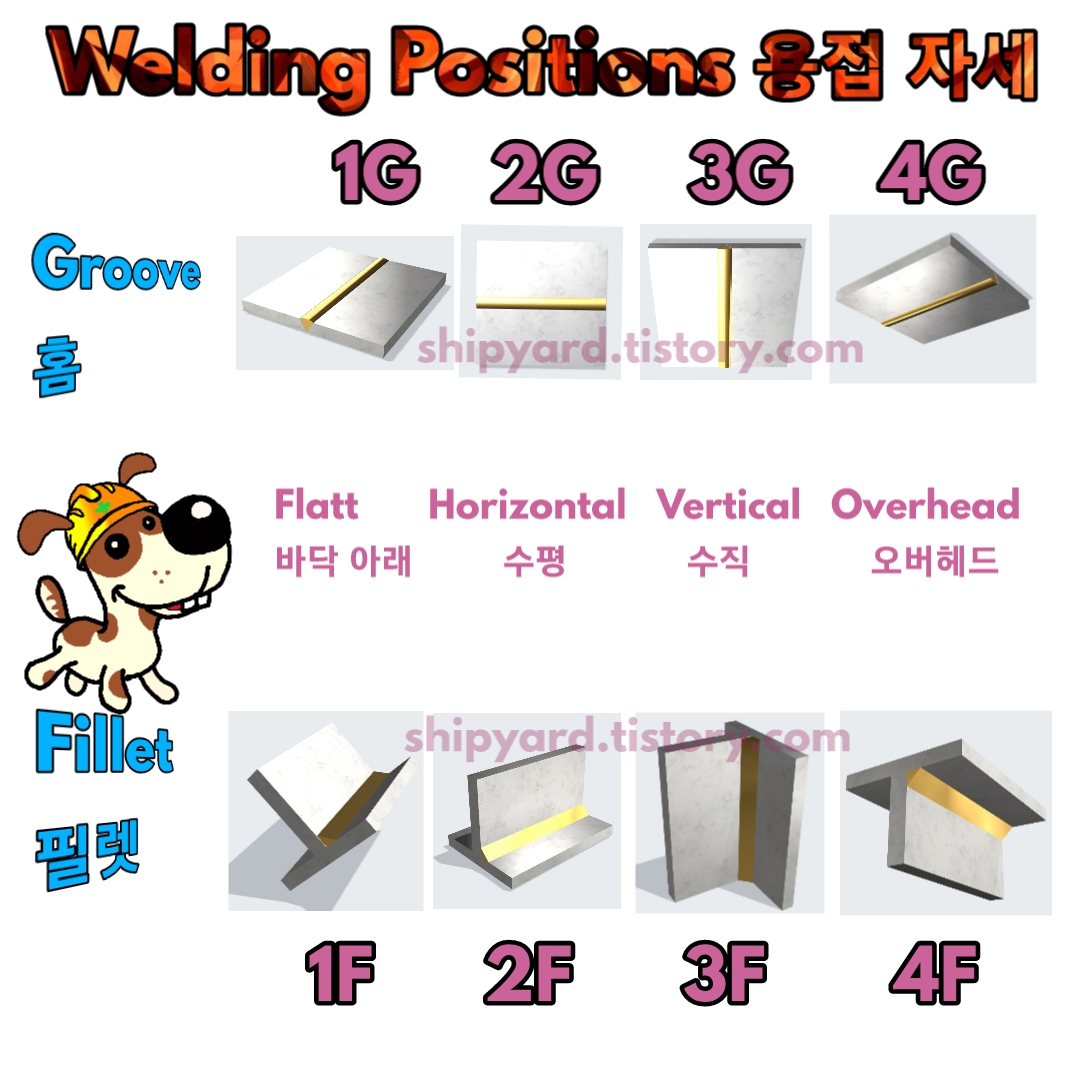

Groove Welding Positions
1G – (flat welding position)
2G – (horizontal welding position)
3G – (vertical welding position)
4G – (welding position overhead or overhead)
5G – (uphill/downhill vertical welding position)
6G/6GR – (overhead vertical welding position)
Fillet welding Positios
1F – (flat welding position)
2F – (horizontal welding position)
3F – (vertical welding position)
4F – (welding position overhead or overhe
